TEOT-3C 80kV 3 Cups Insulation Oil BDV Tester
发布者:扬州市拓腾电气有限公司 发布时间:2021/4/20

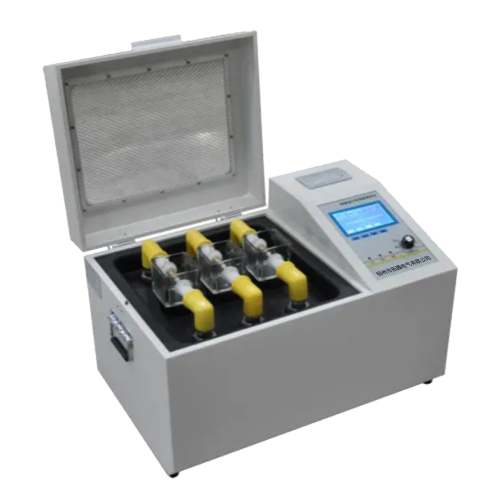

TEOT-3C 80kV 3 Cups Insulation Oil Breakdown Voltage (BDV)Tester



TEOT-3C 80kV 3 Cups Insulation Oil Breakdown Voltage Tester is fully digital industrial instrument with microcomputer control. It has the features of high accuracy and strong anti-interference ability.


Features

      1LCD screen display.

     2、Single-chip control, easy to control.

     3、Wide range watchdog circuit to avoid system halted.

     4、Unique HV sampling design to make the test data entering into A/D converter directly, to avoid error caused by analog circuit, which will make measurement more accurate.

    5、Automatic completing all test procedures.

    6、1-6 times breakdown voltage value and times will be saved automatically. It will print test results.

    7、With over-voltage, over-current and short circuit protection.

    8、Portable design, easy to move.


Specifications

Output voltage 0-80kV optional
Power distortion rate <1%
Voltage increasing speed 2.0kV/s, 2.5kV/s3.0kV/s, 3.5kV/s optional ,Error 0.2kV/s.
Voltage accuracy 2%* reading + 2 digital
Display Large LCD screen
Electrode gap standard 2.5mm
Test time 6 times(1-6 times optional)
Static time 5 min (1-9 min optional)
Booster Capacity 1.5kVA
Power input AC220V± 10%, 50Hz±1Hz
Power 200W
Working temperature 0-40oC
Humidity <85%RH
Dimension 670mm*420mm*410mm
Weight 38kg
