TEOT-80C Insulating Oil BDV Tester
发布者:扬州市拓腾电气有限公司 发布时间:2021/4/19

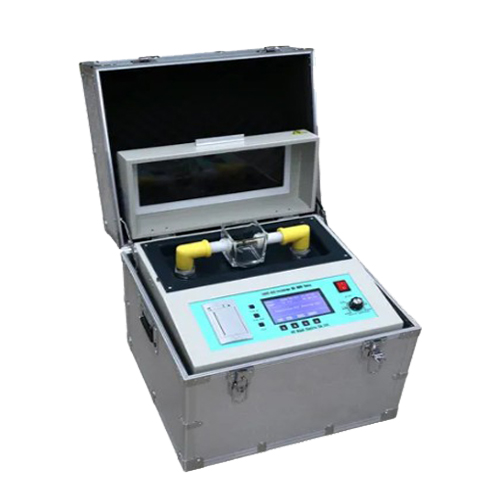

TEOT-80C Insulating Liquid Tester Transformer Oil BDV Tester with box
Description

TEOT Insulation Oil Breaker Tester is fully digital industrial instrument with microcomputer control. It has the features of high accuracy and strong anti-interference ability.


Features
  • LCD screen display.
  • Automatic completing all test procedures.
  • 1-6times breakdown voltage value and times will be saved automatically. It will print test results.
  • 100 results can be stored and display current environmental temperature and humidity.
  • Single-chip control, easy to control.
  • With over-voltage, over-current and limit protection.
  • Display temperature and system clock.
  • With RS232 port.

Specifications

Output voltage 0-80kV
Power distortion rate <1%
Voltage increasing speed 2.0kV/s, 3.0kV/s (choice one) Error 0.2kV/s
Electrode gap standard 2.5mm
Display LCD screen
Voltage increasing interval 5mins, adjustable
Voltage increasing times 1-6times, optional
Capacity 1.5kVA
Power input AC220V±10%, 50Hz±1Hz
Power 200W
Working temperature 0-40oC
Humidity <85%RH
Dimension 430*350*370mm
